TC48REAC




48RE Transfer Case Support + Mount
2003-up Dodge Diesel 4x4 with 48RE



48RE 4wd overdrive housings often crack.

Failure is typically due to the lacking support of the heavy transfer case (weighs about 80lbs / 36.29kg).

* TC48REAC has been engineered to solve this!

* Quick installation - a few minutes and it’s done!

* Fits between transfer case and existing skid plate.

* Uses popular universal GM RWD mount (included).

* All necessary hardware is included.

* Great add-on to transmission service: Your Customer will easily see and understand how failures occur and how this will save them big money with prevention.

The ‘03-up Dodge Diesel 4wd trucks, equipped with the 48RE, have problems with cracking the overdrive housing. Their t-cases, mated to the overdrive housing, weigh about 80 lbs but have nothing in place to support them. TC48REAC solves this problem. A specially designed steel bracket installs in place of the lower two bolts (longer bolts supplied), and includes the common GM universal mount. As if it were meant for this, the factory skid plate has an existing hole! TC48REAC includes a machined steel spacer/washer (fits below skid plate) with tapered groove to clear OEM stamping.

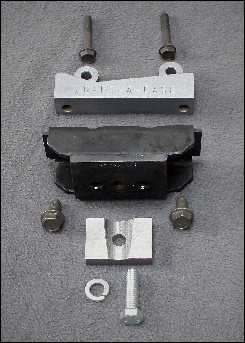

TC48REAC includes everything pictured here to allow for quick and easy installation! OEM skid plate is required! (Most Dodge 4x4 trucks are equipped with one from factory)

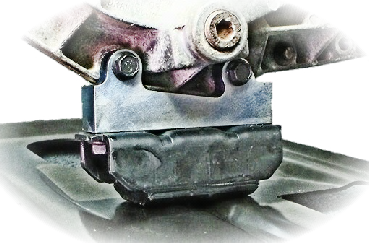

TC48REAC installed: OEM skid plates have a pre-existing hole... as if it were made for this!





The Right Tool For The Job.
